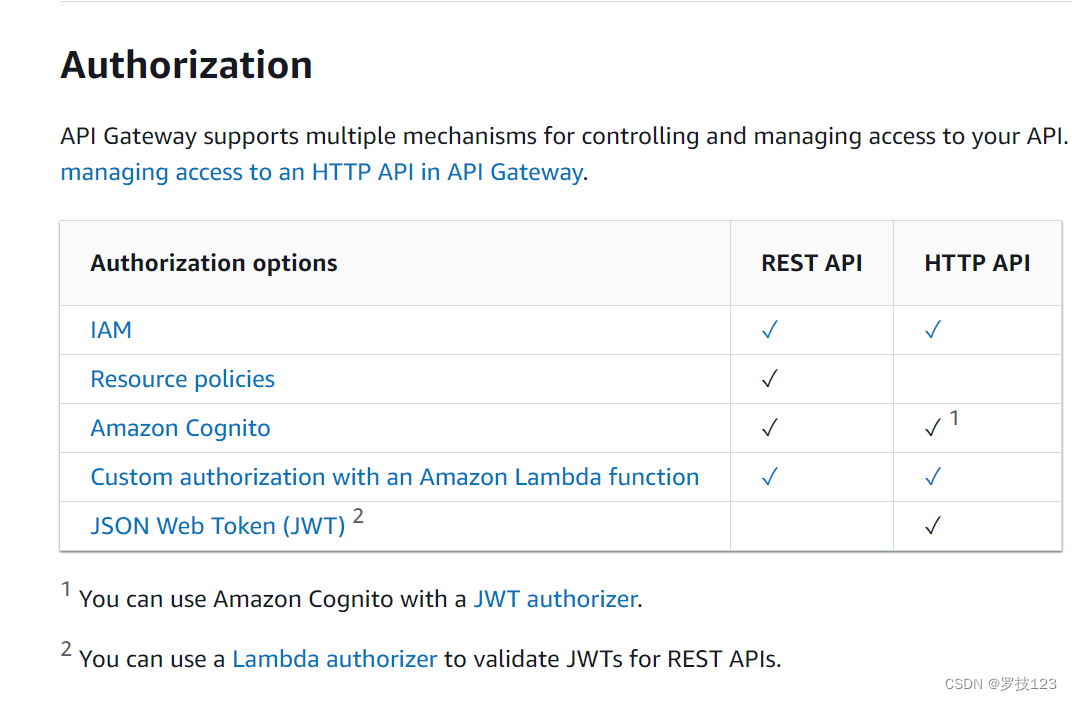

APIGateway的支持的认证如下:
我们从表格中可以看到,HTTP API 不支持资源策略的功能,另外是通过JWT的方式集成Cognito的。
对于REST API则是没有显示说明支持JWT认证,这个我们可以通过Lambda 自定义的方式来实现。
所以按照这个说法,除了资源策略,各种认证方式HTTP API和REST API 都能够实现。
资源策略note:HTTP API没有资源策略,所以这个部分都都是关于REST API的。
先谈资源策略,因为这个是两个API唯一不同的地方。
资源策略默认为空,对于公有API来是完全放开的,但是如果写了任意一条策略,那么其他的策略都会变成Deny,但是对于私有API来说,没有资源策略则意味着完全私有。
下面是三种资源策略:
允许特定的账户访问APIGateway,因为访问人是账户,所以这个就需要开启IAM验证。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 { "Version" : "2012-10-17" , "Statement" : [ { "Effect" : "Allow" , "Principal" : { "AWS" : [ "arn:aws:iam::{{otherAWSAccountID}}:root" , "arn:aws:iam::{{otherAWSAccountID}}:user/{{otherAWSUserName}}" , "arn:aws:iam::{{otherAWSAccountID}}:role/{{otherAWSRoleName}}" ] } , "Action" : "execute-api:Invoke" , "Resource" : [ "execute-api:/{{stageNameOrWildcard*}}/{{httpVerbOrWildcard*}}/{{resourcePathOrWildcard*}}" ] } ] }
基于IP的访问策略如下:。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 { "Version" : "2012-10-17" , "Statement" : [ { "Effect" : "Deny" , "Principal" : "*" , "Action" : "execute-api:Invoke" , "Resource" : "execute-api:/{{stageNameOrWildcard}}/{{httpVerbOrWildcard}}/{{resourcePathOrWildcard}}" , "Condition" : { "IpAddress" : { "aws:SourceIp" : [ "{{sourceIpOrCIDRBlock}}" , "{{sourceIpOrCIDRBlock}}" ] } } } , { "Effect" : "Allow" , "Principal" : "*" , "Action" : "execute-api:Invoke" , "Resource" : "execute-api:/{{stageNameOrWildcard}}/{{httpVerbOrWildcard}}/{{resourcePathOrWildcard}}" } ] }
允许来自来自特定VPC的流量:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 { "Version" : "2012-10-17" , "Statement" : [ { "Effect" : "Deny" , "Principal" : "*" , "Action" : "execute-api:Invoke" , "Resource" : "execute-api:/{{stageNameOrWildcard}}/{{httpVerbOrWildcard}}/{{resourcePathOrWildcard}}" , "Condition" : { "StringNotEquals" : { "aws:sourceVpc" : "{{vpcID}}" } } } , { "Effect" : "Allow" , "Principal" : "*" , "Action" : "execute-api:Invoke" , "Resource" : "execute-api:/{{stageNameOrWildcard}}/{{httpVerbOrWildcard}}/{{resourcePathOrWildcard}}" } ] }

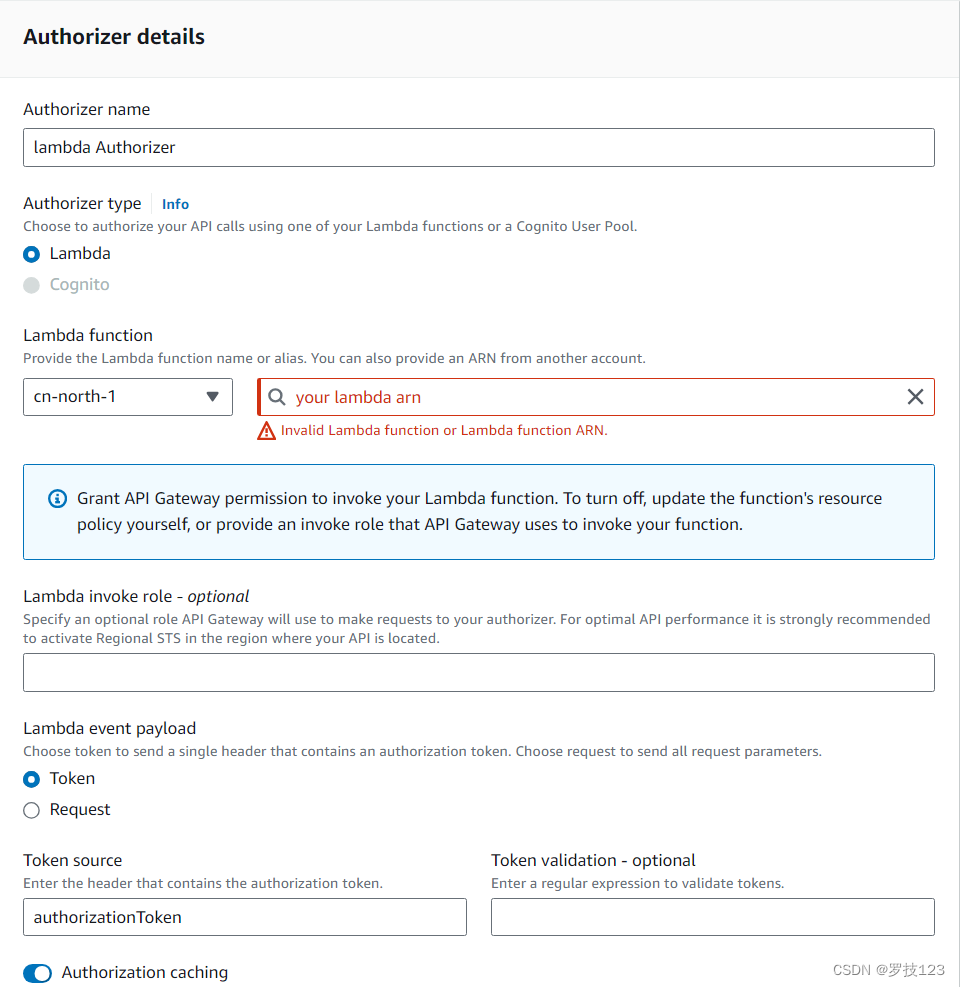

Lambda授权方Lambda的认证方式可以自定义认证的方式,以下是一个官方提供的RSET API认证的例子,当然也在这个代码中实现JWT的颁发认证,以及SSO中我们常用的Oauth,SAML和OIDC协议 。
REST API1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 import jsondef lambda_handler (event, context ): token = event['authorizationToken' ] if token == 'allow' : print ('authorized' ) response = generatePolicy('user' , 'Allow' , event['methodArn' ]) elif token == 'deny' : print ('unauthorized' ) response = generatePolicy('user' , 'Deny' , event['methodArn' ]) elif token == 'unauthorized' : print ('unauthorized' ) raise Exception('Unauthorized' ) return 'unauthorized' try : return json.loads(response) except BaseException: print ('unauthorized' ) return 'unauthorized' def generatePolicy (principalId, effect, resource ): authResponse = {} authResponse['principalId' ] = principalId if (effect and resource): policyDocument = {} policyDocument['Version' ] = '2012-10-17' policyDocument['Statement' ] = [] statementOne = {} statementOne['Action' ] = 'execute-api:Invoke' statementOne['Effect' ] = effect statementOne['Resource' ] = resource policyDocument['Statement' ] = [statementOne] authResponse['policyDocument' ] = policyDocument authResponse['context' ] = { "stringKey" : "stringval" , "numberKey" : 123 , "booleanKey" : True } authResponse_JSON = json.dumps(authResponse) return authResponse_JSON

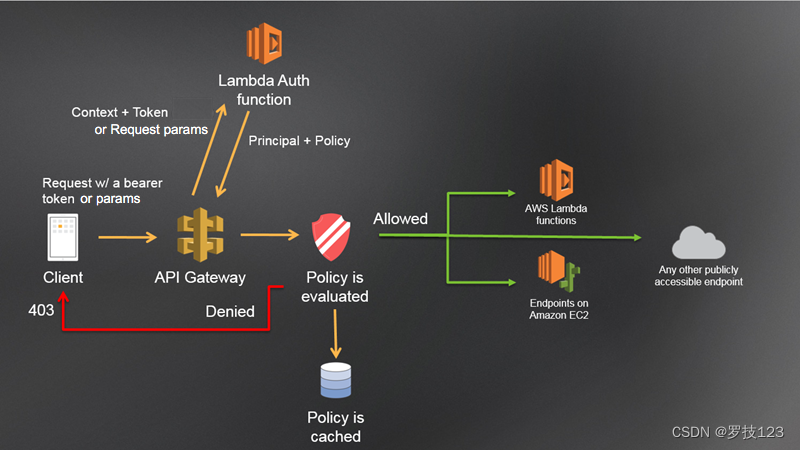

这个是官方文档的一张图: 也就是说当访问APIGatewa有的时候会带上一个凭证,然后这个凭证会被传递到负责验证的Lambda中,这个lambda会根据传递的请求头会返回allow或者deny的资源策略,或者unauthorized的异常。

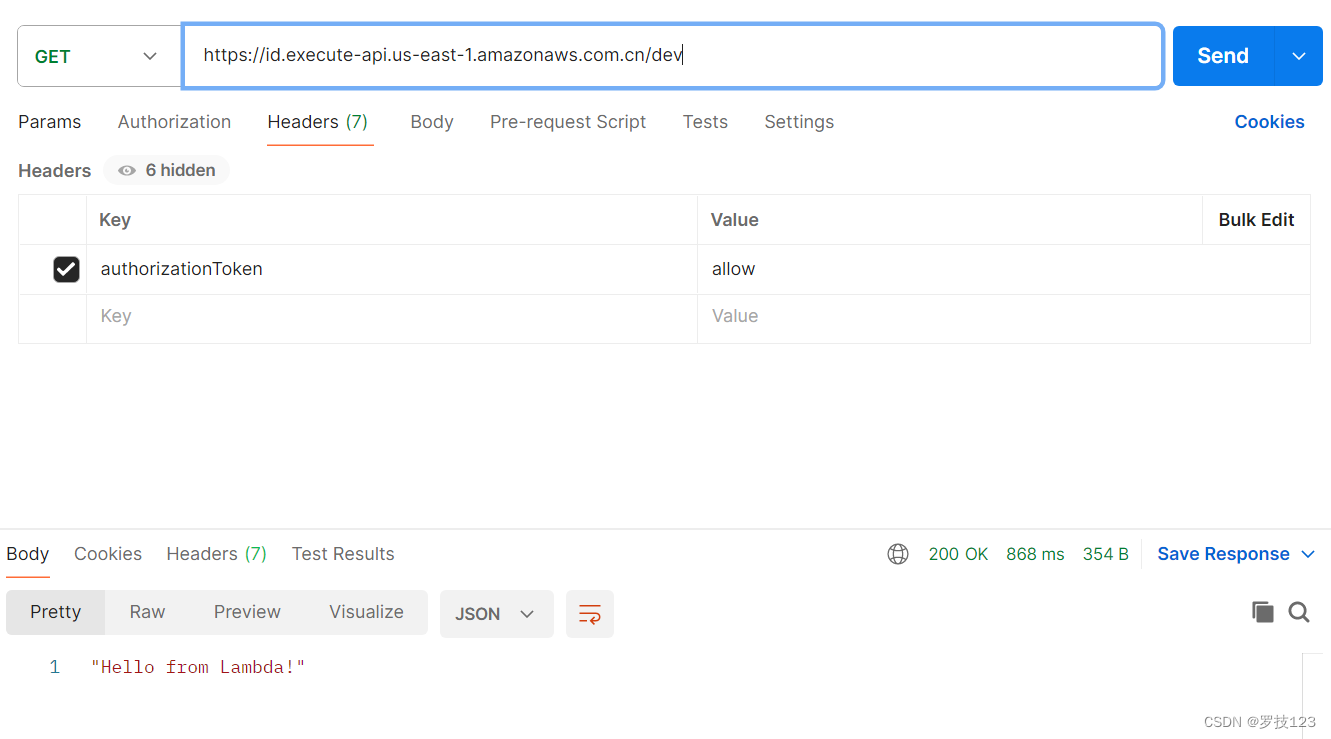

在Header中添加{Authorization: allow},是可以请求成功的。

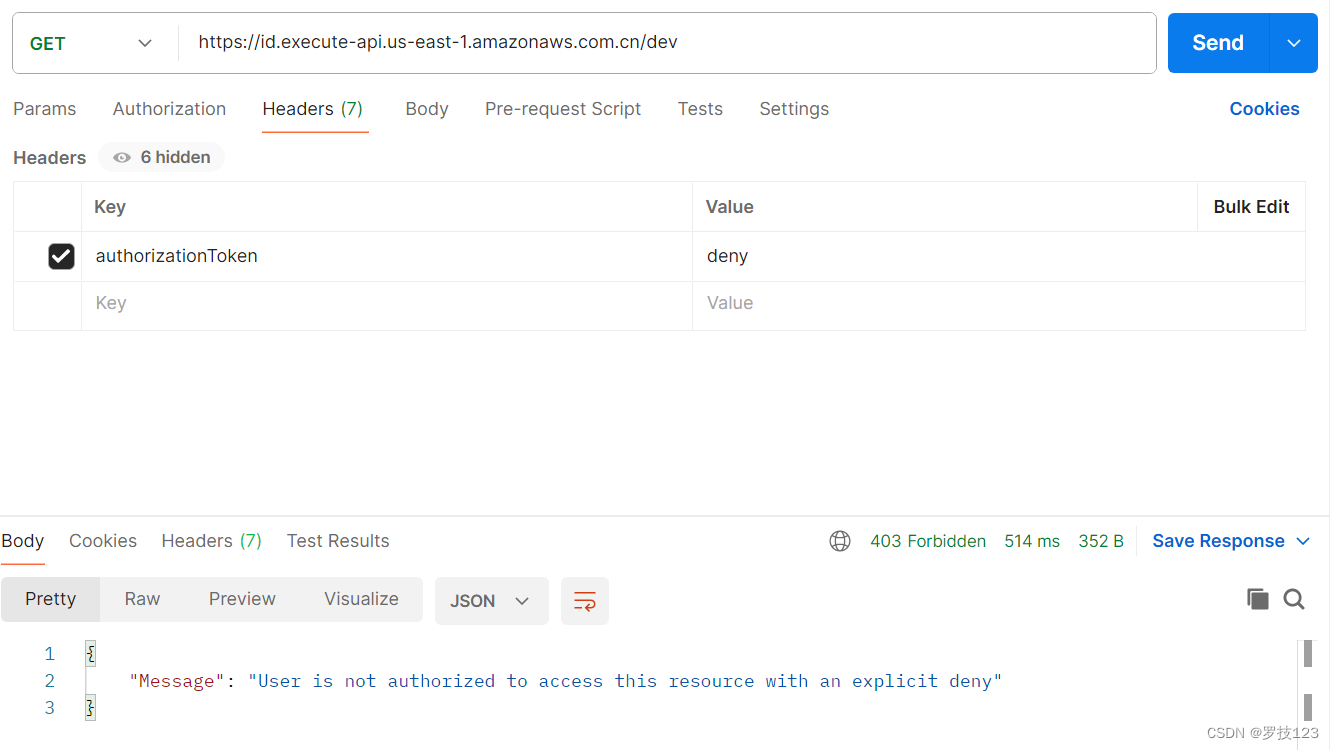

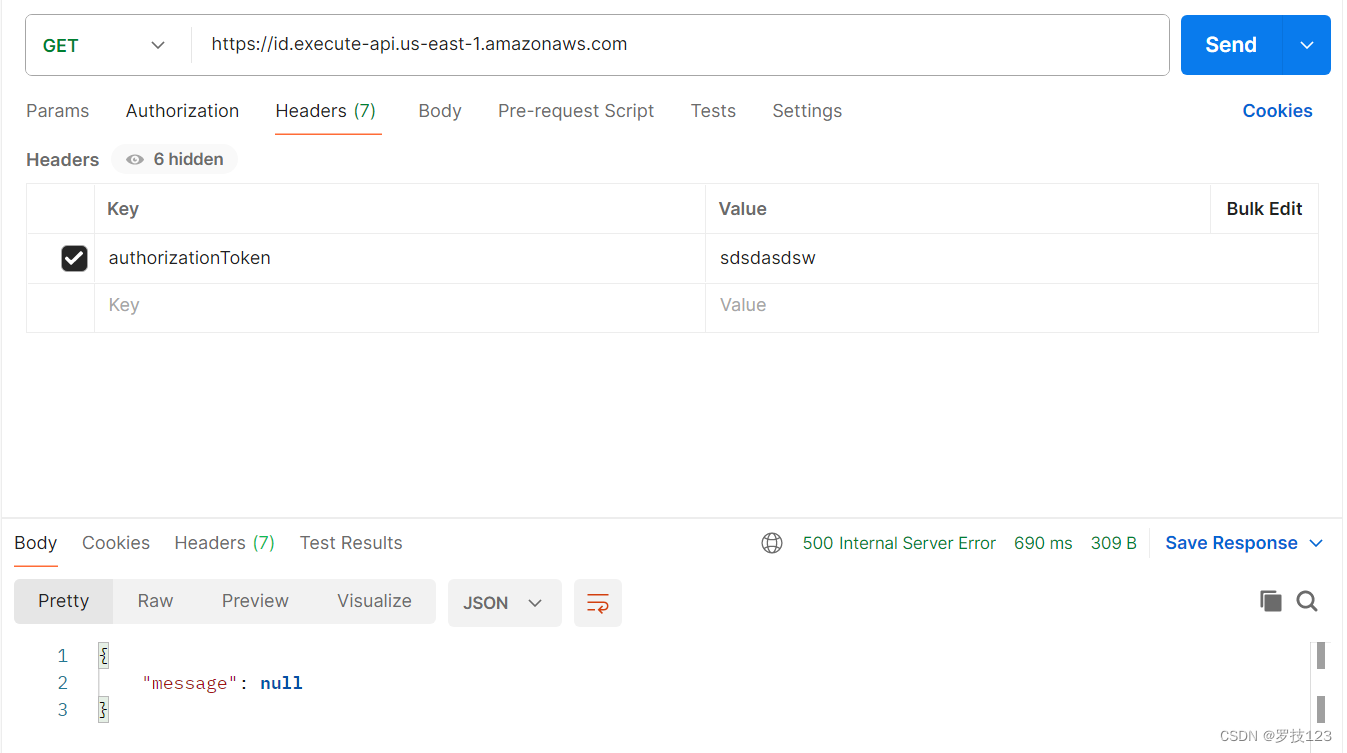

在Header中添加{Authorization: deny},可以按照预期拦截。 在Header中添加未认证的token,即不在黑白名单内的,报错500 符合预期

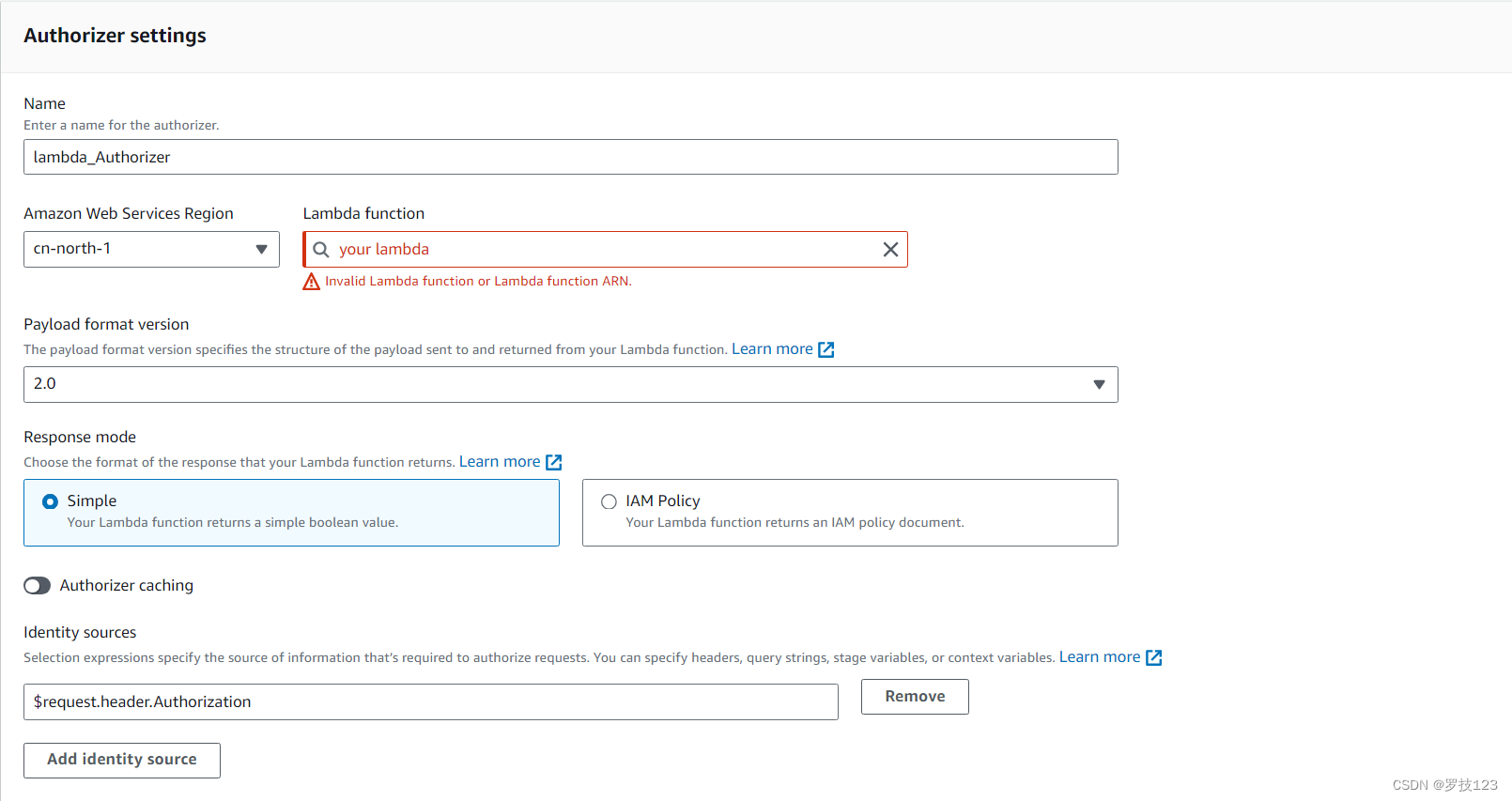

HTTP API然后我们再来看HTTP API,由于没有资源策略,所以授权方函数的代码和之前不一样。授权方的配置如下:
再来看一看代码,
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 import jsondef lambda_handler (event, context ): response = { "isAuthorized" : False , "context" : { "stringKey" : "value" , "numberKey" : 1 , "booleanKey" : True , "arrayKey" : ["value1" , "value2" ], "mapKey" : {"value1" : "value2" } } } try : if (event["headers" ]["authorization" ] == "secretToken" ): response = { "isAuthorized" : True , "context" : { "stringKey" : "value" , "numberKey" : 1 , "booleanKey" : True , "arrayKey" : ["value1" , "value2" ], "mapKey" : {"value1" : "value2" } } } print ('allowed' ) return response else : print ('denied' ) return response except BaseException: print ('denied' ) return response

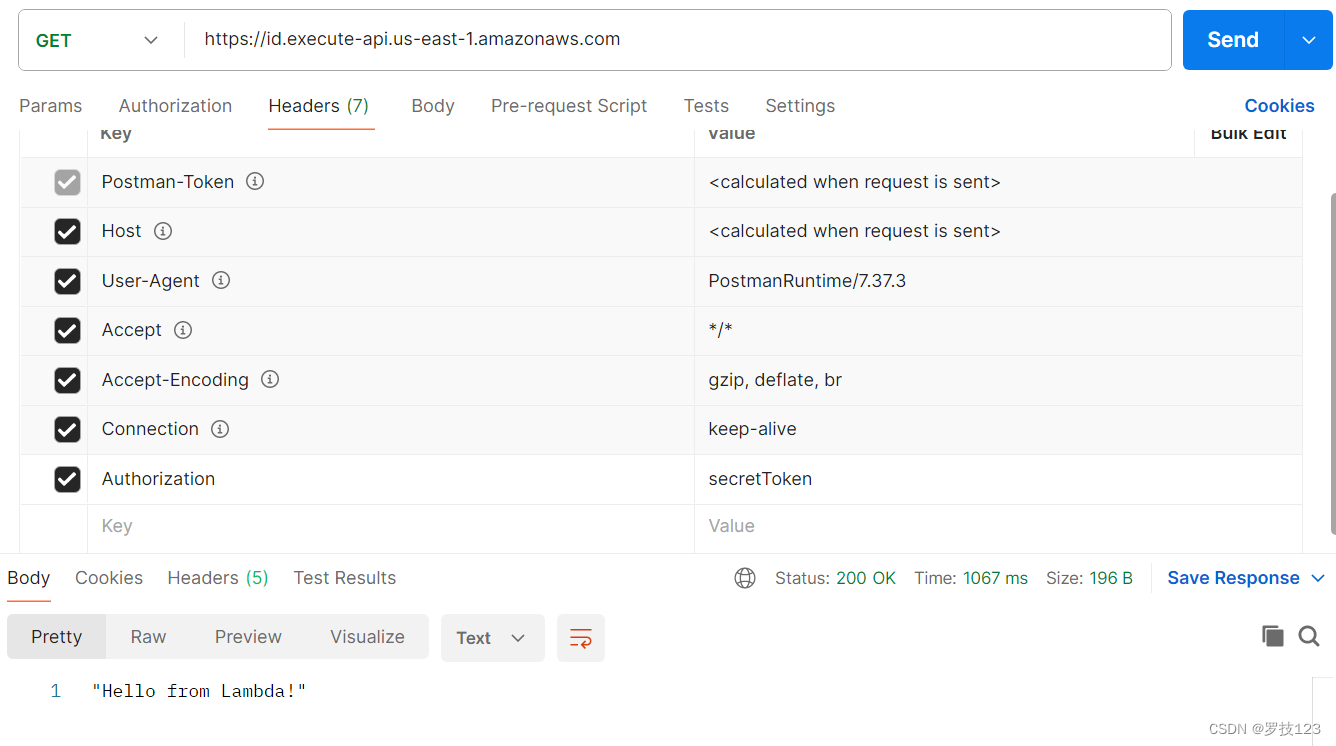

在Header中添加{Authorization: secretToken},是可以请求成功的。

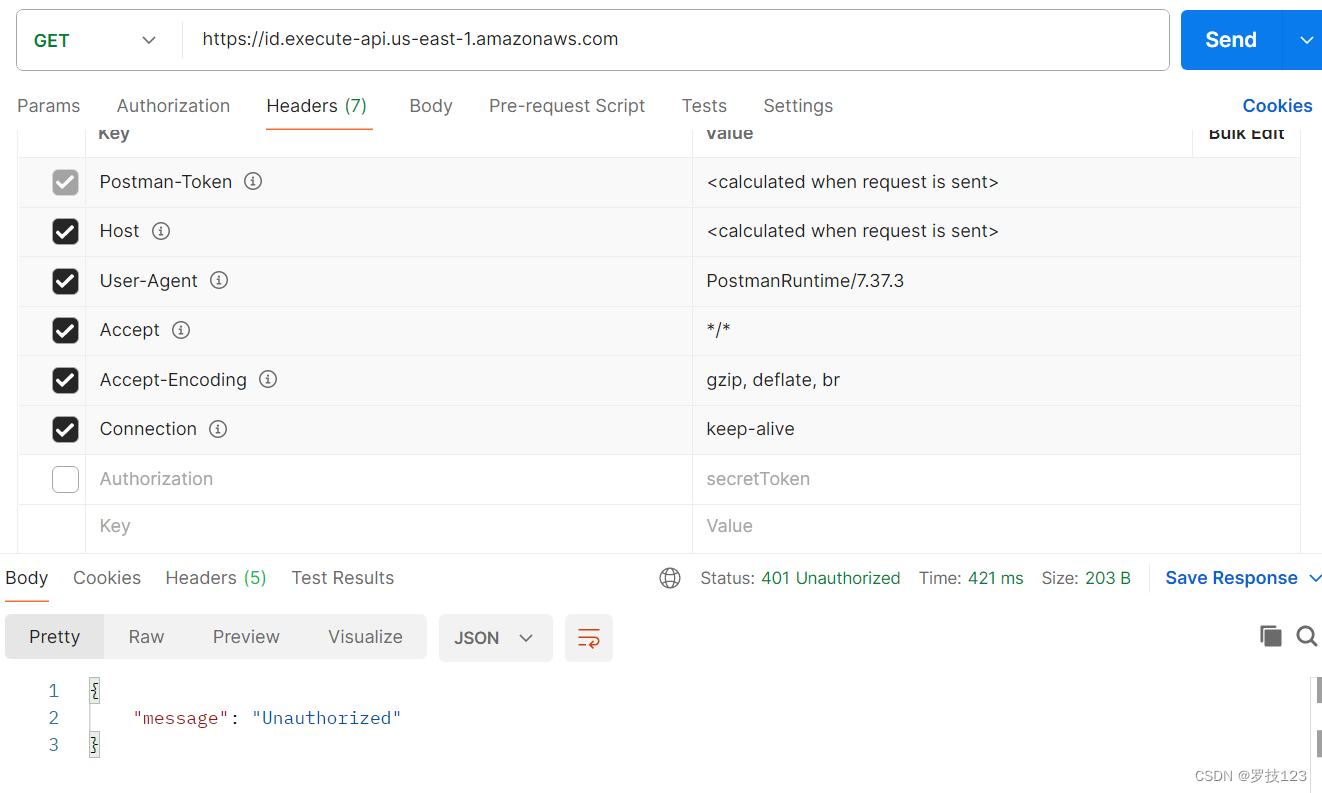

如果在请求的时候没有添加Authorization的Header,这个时候是返回401 “message”: “Unauthorized”,由于我们没有在请求的时候带入身份,所以会返回401。

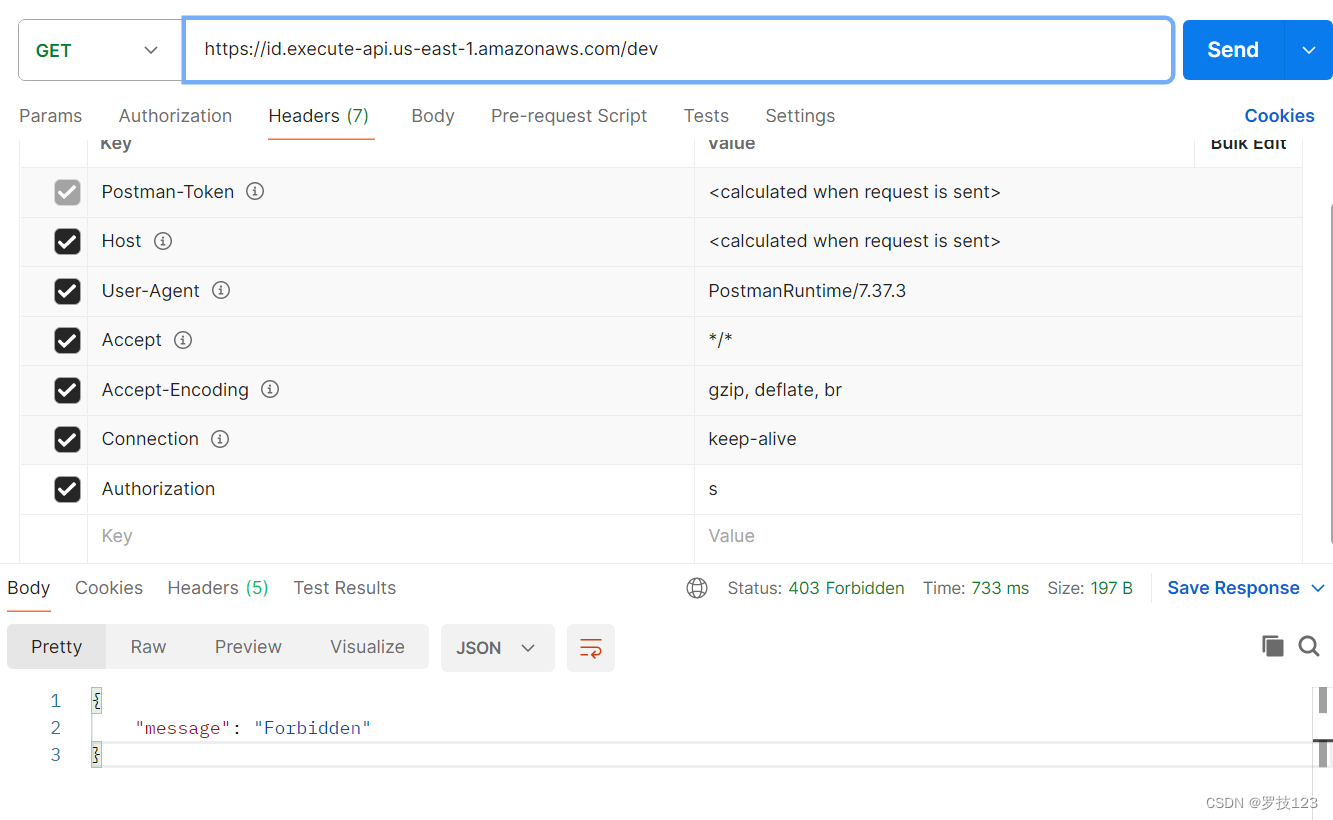

如果传递的token不对,那么会报错403 “message”: “Forbidden”。即我们传递了一个token到后端,但是没有通过认证,也就说没有对应的权限。
Cognito 授权note:

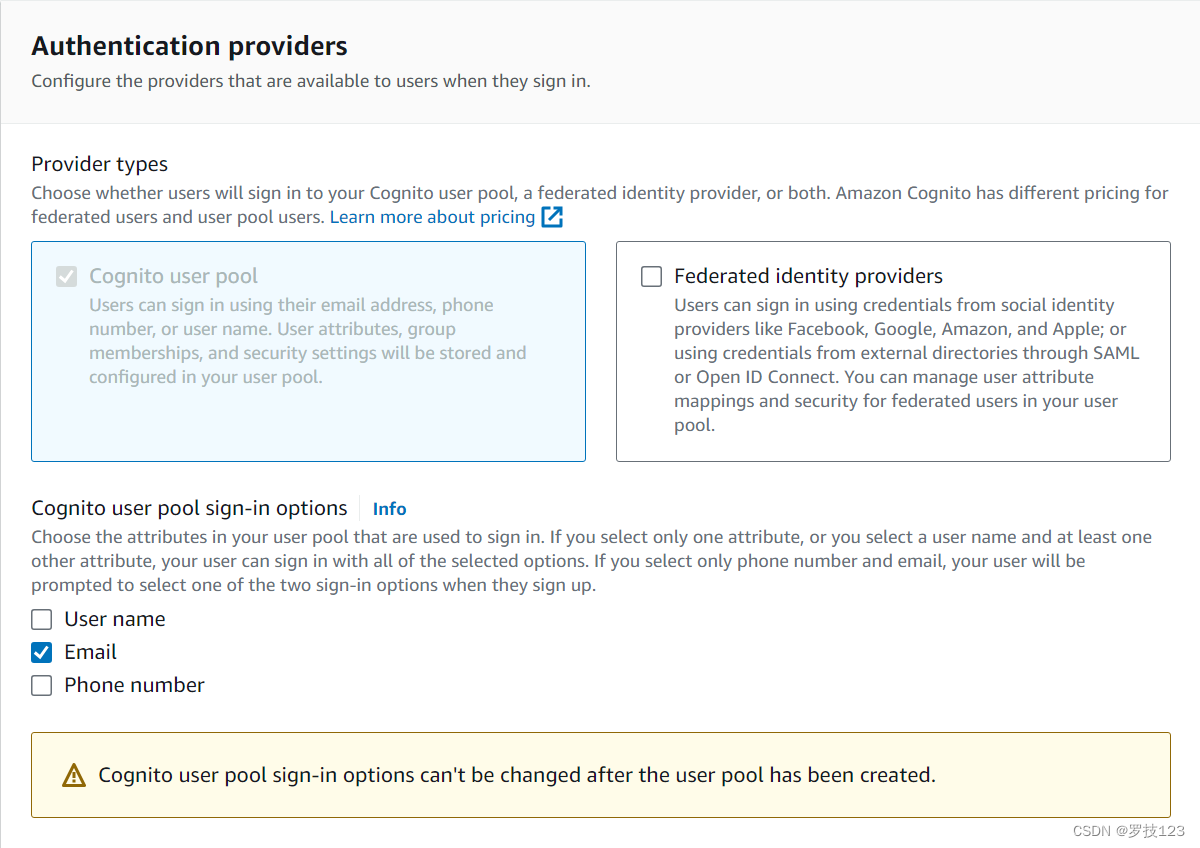

由于中国区没有Cognito用户池,所以此功能在中国区不可用。 REST API 提供了直接集成Cognito的方式,对于HTTP API而言可以使用JWT的方式来支持Cognito。 下面启动一个Cognito用户池,由于是简单测试,所以没有集成第三方身份提供商。

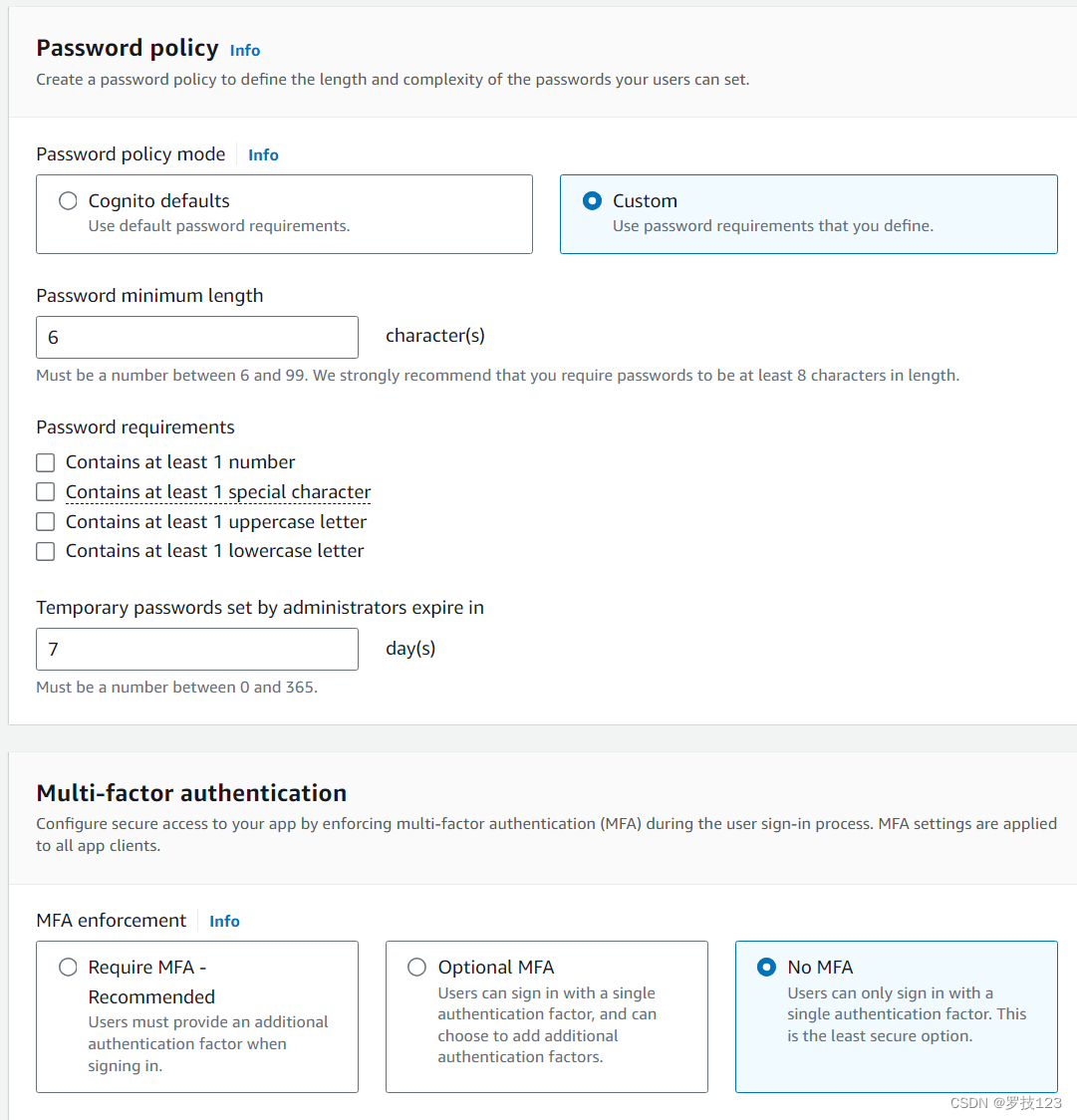

接下来设置密码策略并且关闭MFA,然后下一步直接到 Step 5 Integrate your app。

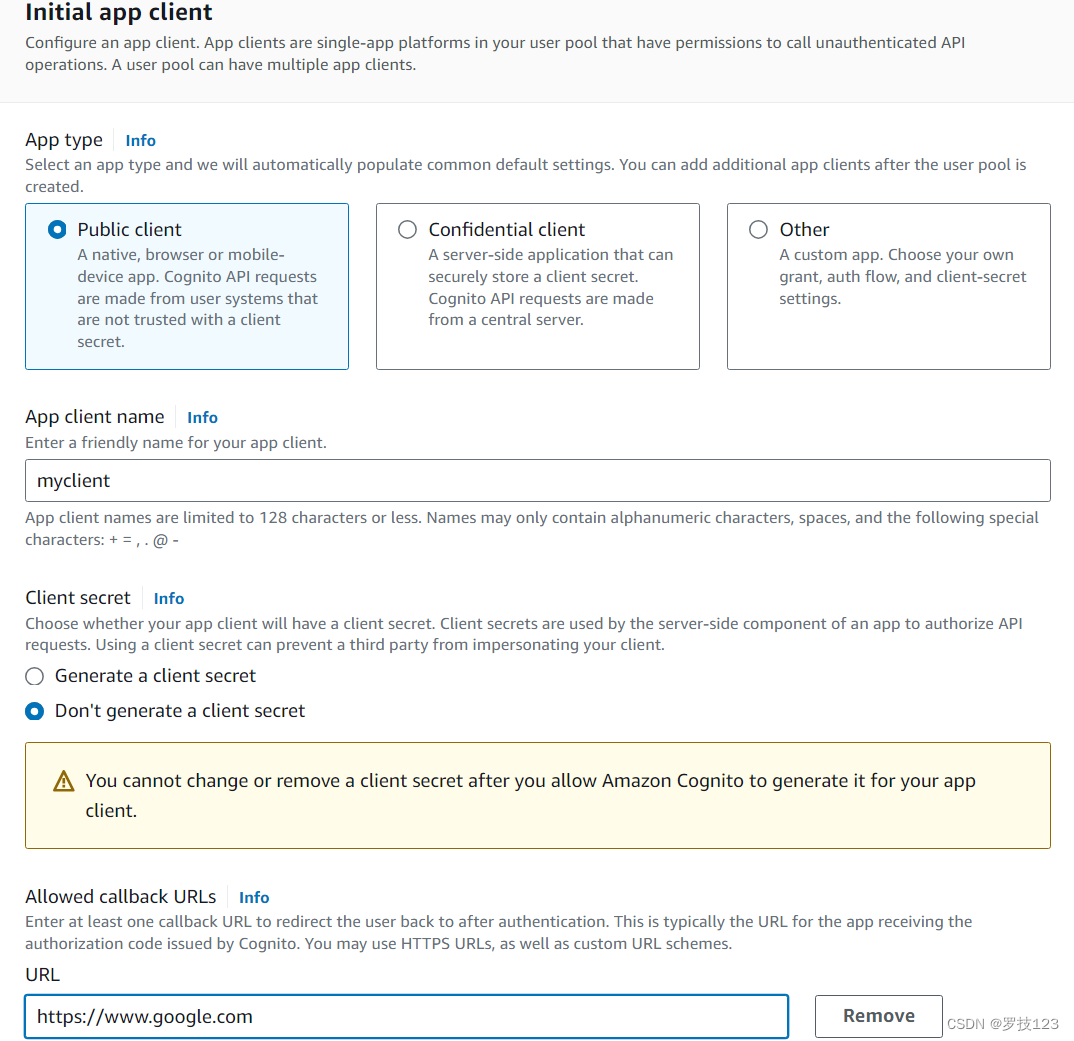

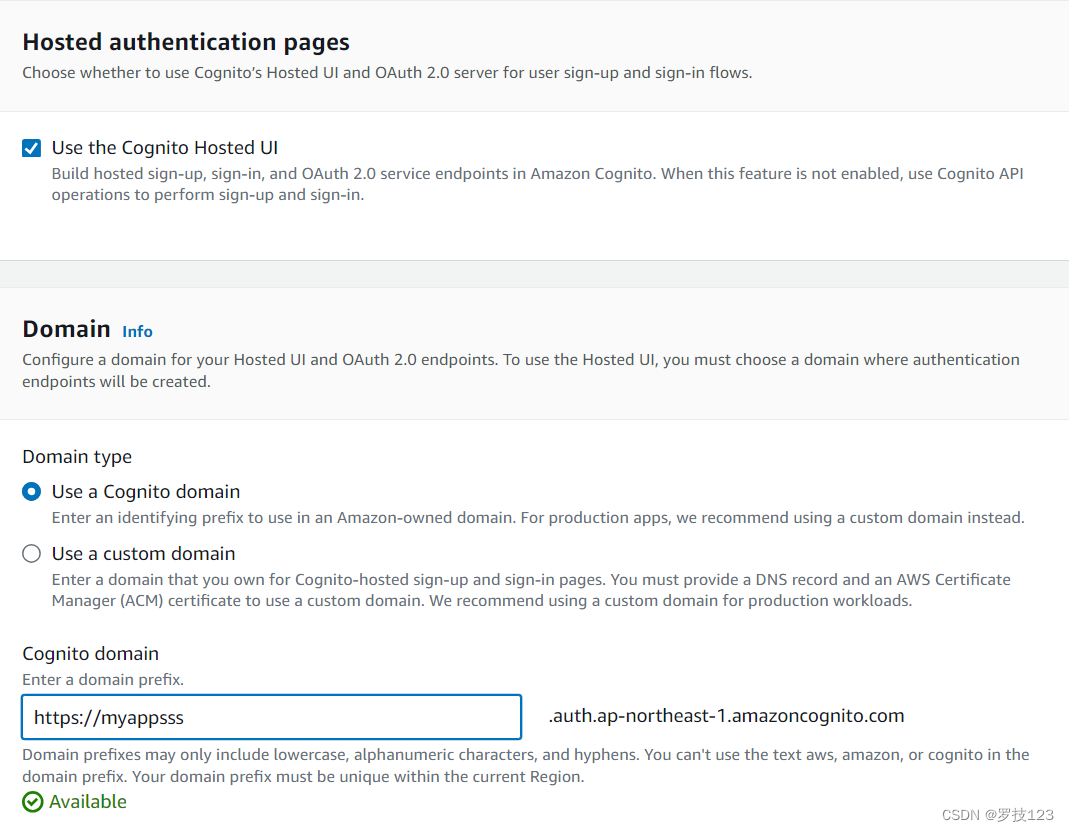

使用托管UI并且设置Cognito domain的URL,以及回调URL。随后我们通过内置的Cognito UI登录,会调转到我们设置的回调函数,同时带着我们需要的凭证。

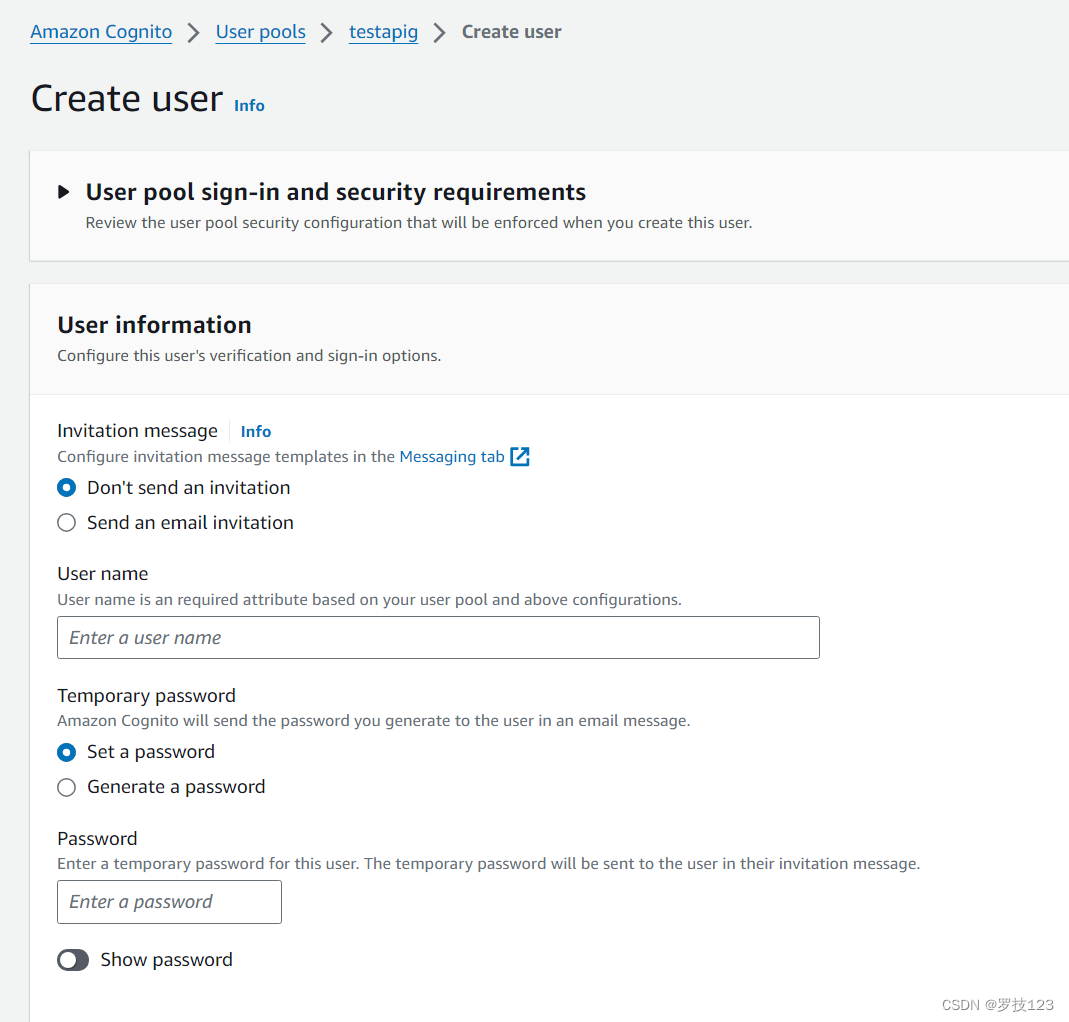

接下来是创建用户,我们接下来要我们使用这个用户登录Cognito UI。

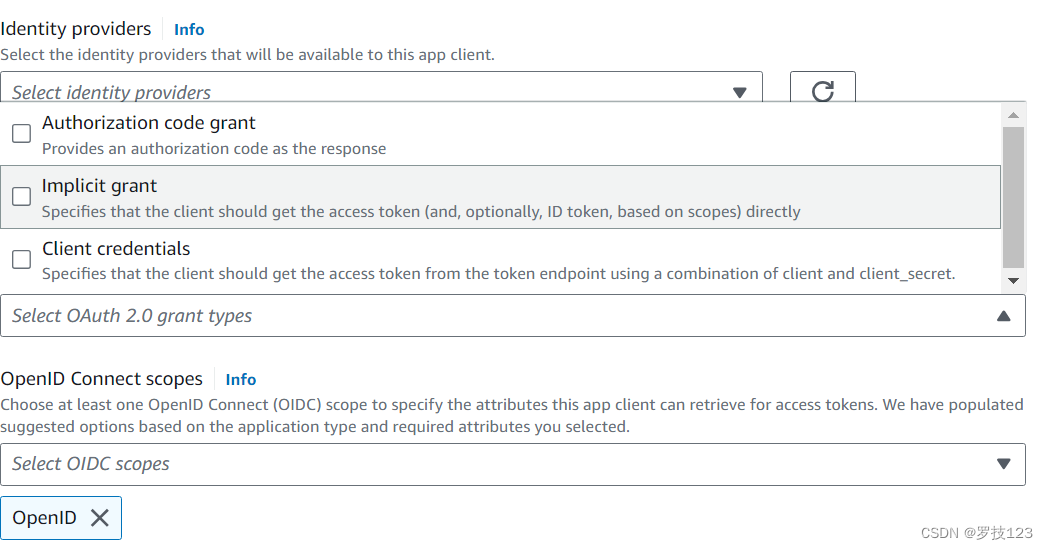

然后编辑托管UI的配置选择Implicit grant

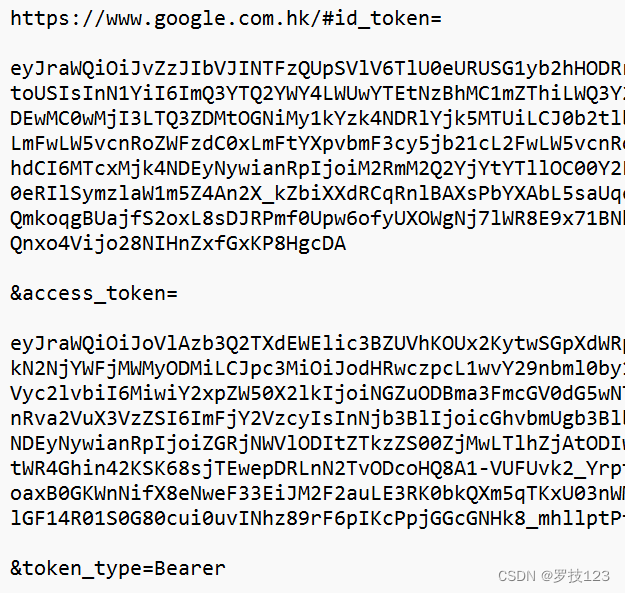

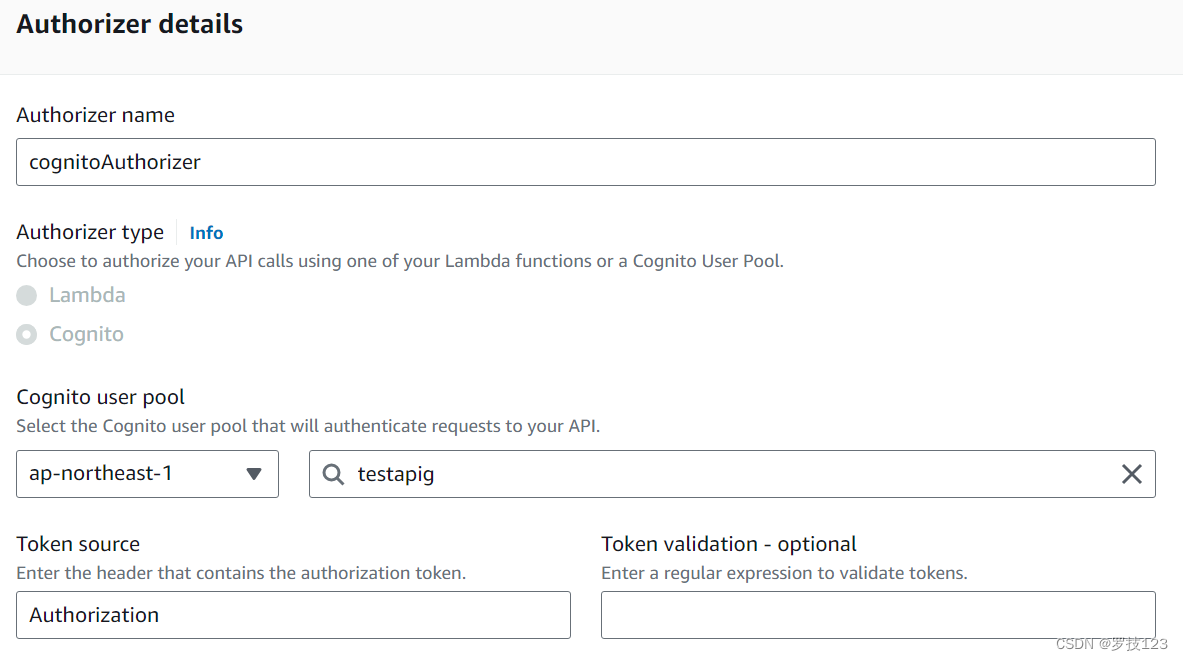

登录之后会跳转到我们的设置的回调函数,同时会返回id_token,access_token。 设置Cognito授权方,选择前面创建好的Cognito用户池,然后设置加上请求头Authorization。

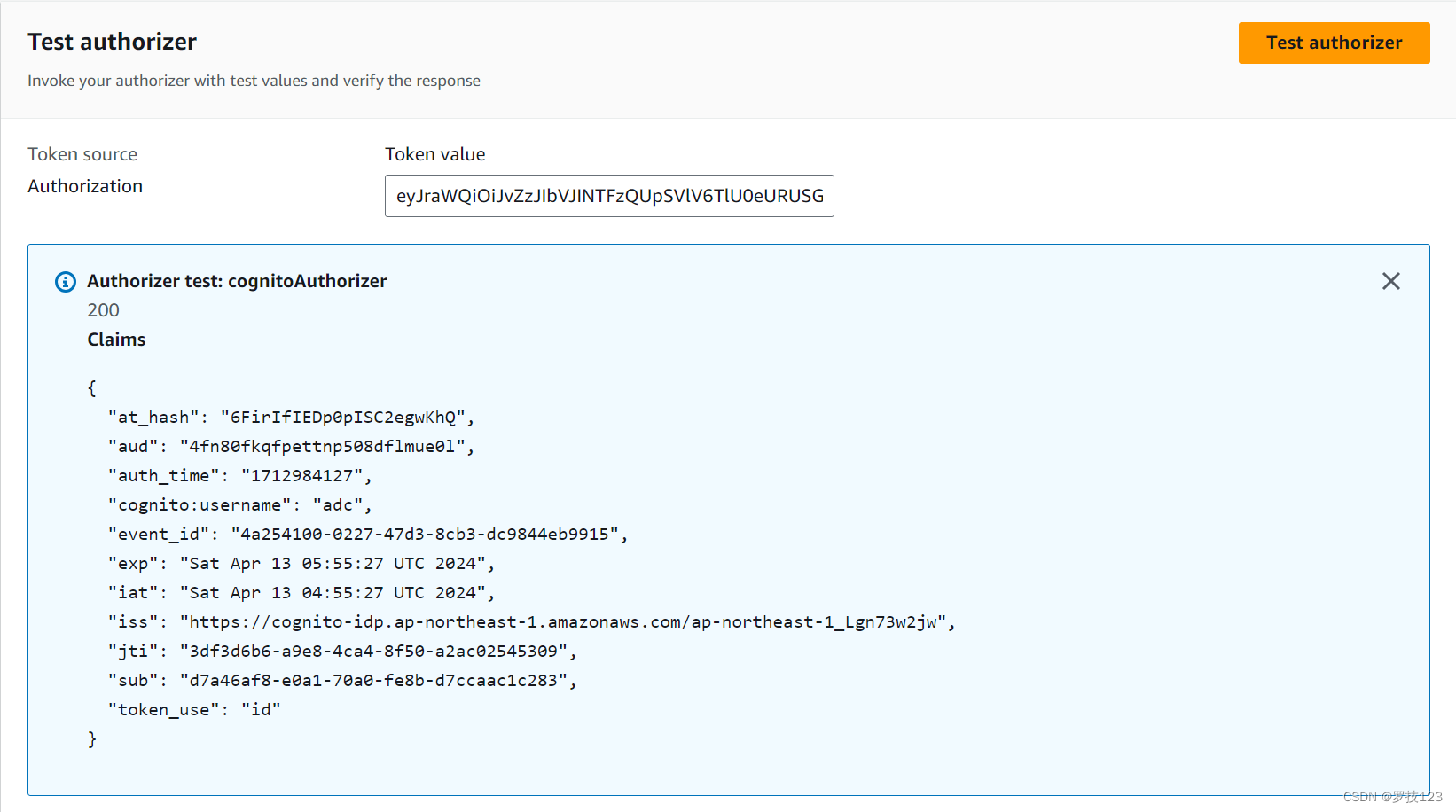

填写之后可以测试,使用前面回调返回的id_token,这里测试之后,重新部署API 然后再使用Postman再次测试。

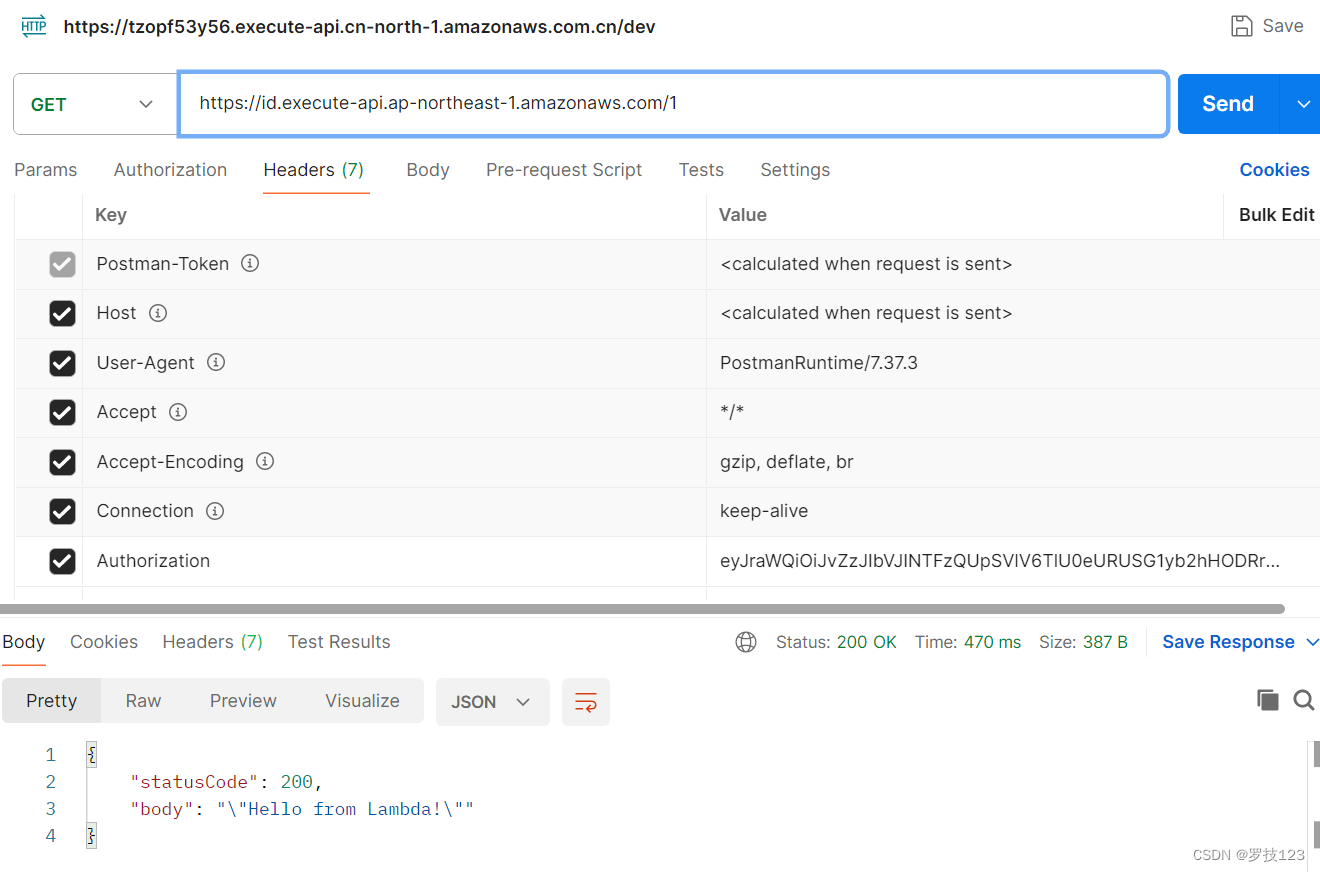

Postman的设置如下,这里添加了请求头{ Authorization:}
IAM 授权IAM 认证比较特殊,对于中国区而言,如果你没有备案,那么只能使用IAM认证的方式进行认证。

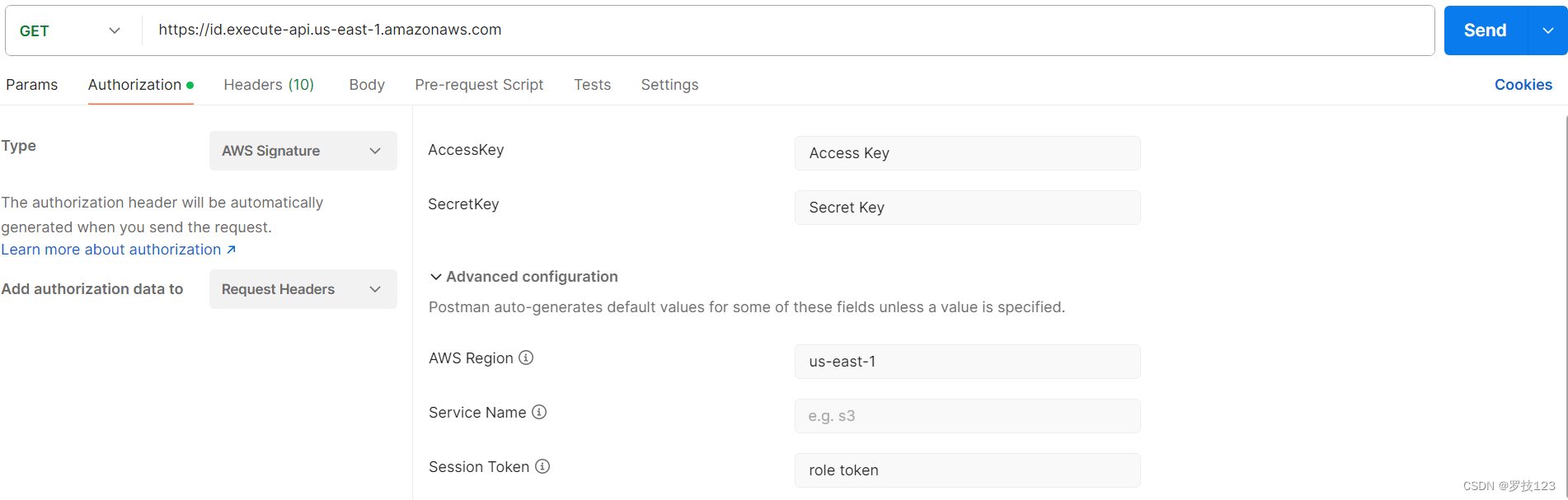

这里其实就是SignV4的算法,我们可以使用Postman来做签名,如下:
如果你的应用需要使用SignV4访问API使用代码:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 import boto3import requestsfrom requests.auth import AuthBasefrom botocore.auth import SigV4Authfrom botocore.awsrequest import AWSRequestclass BotoSigV4Auth (AuthBase ): """为 HTTP 请求创建 AWS Signature V4""" def __init__ (self, service, region ): self .service = service self .region = region self .session = boto3.Session() self .credentials = self .session.get_credentials() def __call__ (self, r ): aws_request = AWSRequest(method=r.method, url=r.url, data=r.body) SigV4Auth(self .credentials, self .service, self .region).add_auth(aws_request) r.headers.update(dict (aws_request.headers.items())) return r def main (): service = 'execute-api' region = 'us-east-1' api_url = 'https://你的api网关.execute-api.us-east-1.amazonaws.com/你的阶段/你的资源' session = requests.Session() session.auth = BotoSigV4Auth(service, region) response = session.get(api_url) print ("Response Status Code:" , response.status_code) print ("Response Text:" , response.text) if __name__ == "__main__" : main()
JWT 授权note: 这个部分属于HTTP API的认证,REST API
由于OIDC协议使用JWT作为中间凭证,所以在这里可以使用Auth0来代替JWT的颁发商。配置如下:

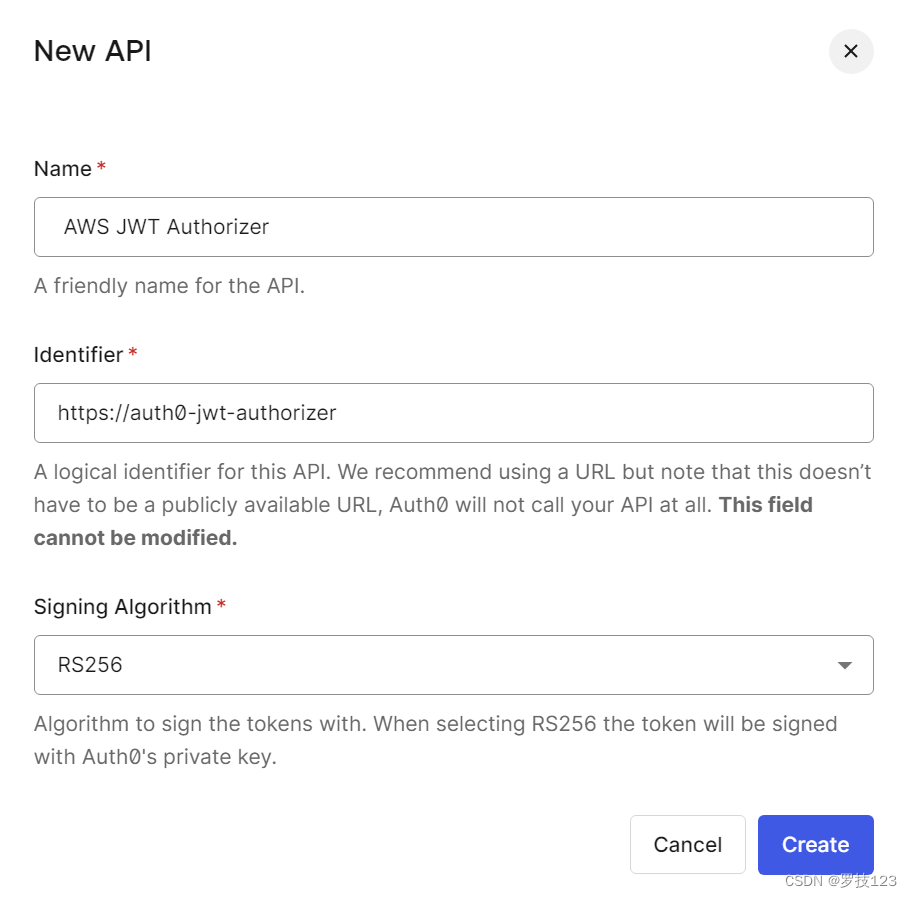

在Applications - APIS中新建API: 然后这个时候,auth0 会自动生成一个Application,后续我们会使用这个Application的Client ID和Secret ID以及Domain的信息来登录。

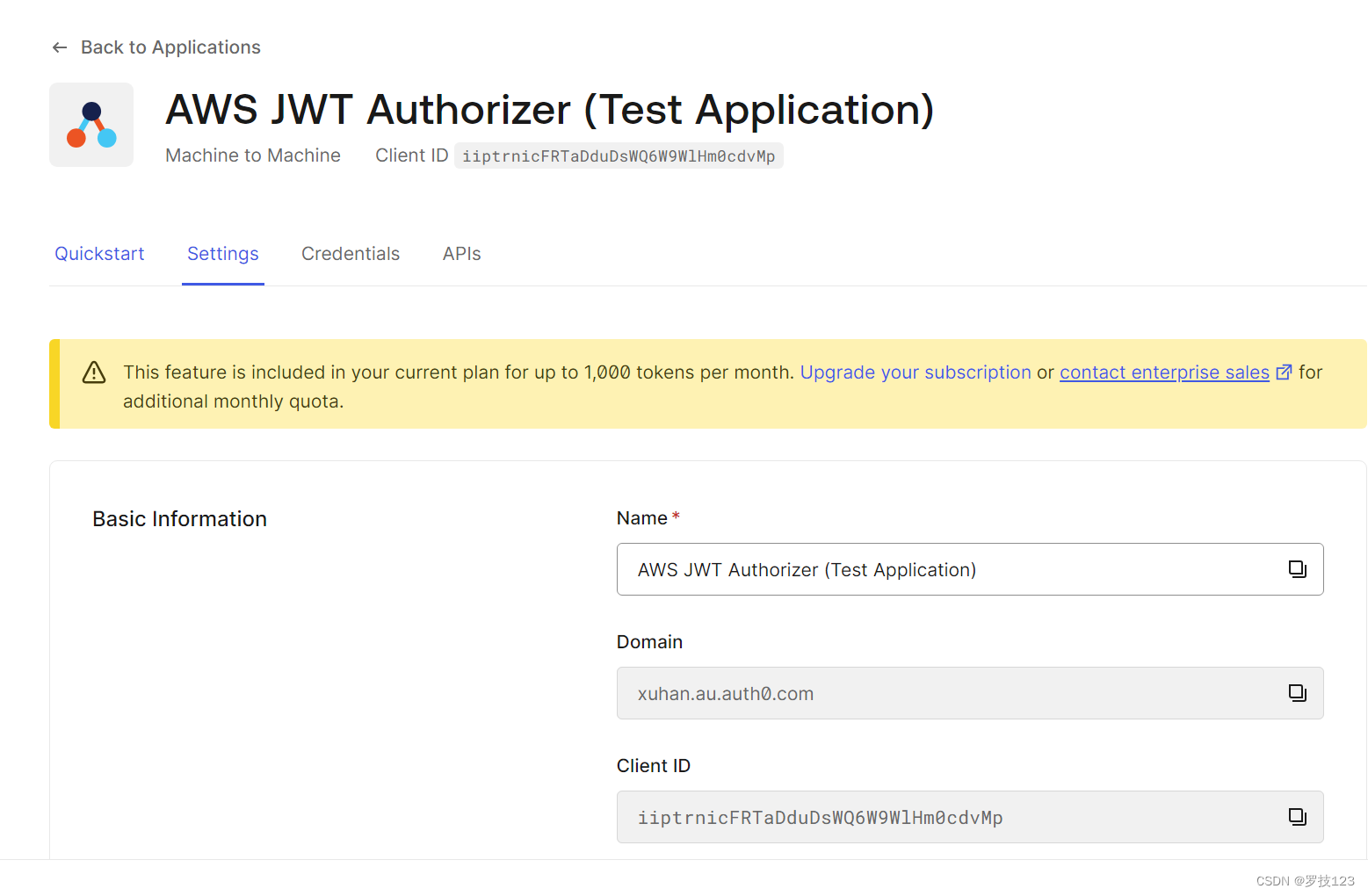

也就是说这三个信息确定了一个身份池,然后符合规则的用户可以通过这个身份池来换取JWT。可以在Applications-Applications 中看到。
配置好之后,可以通过Auth0的API来拿到登录后的JWT,以下是一个官方给的教程可以用来测试功能,当然也可以集成到APP中。

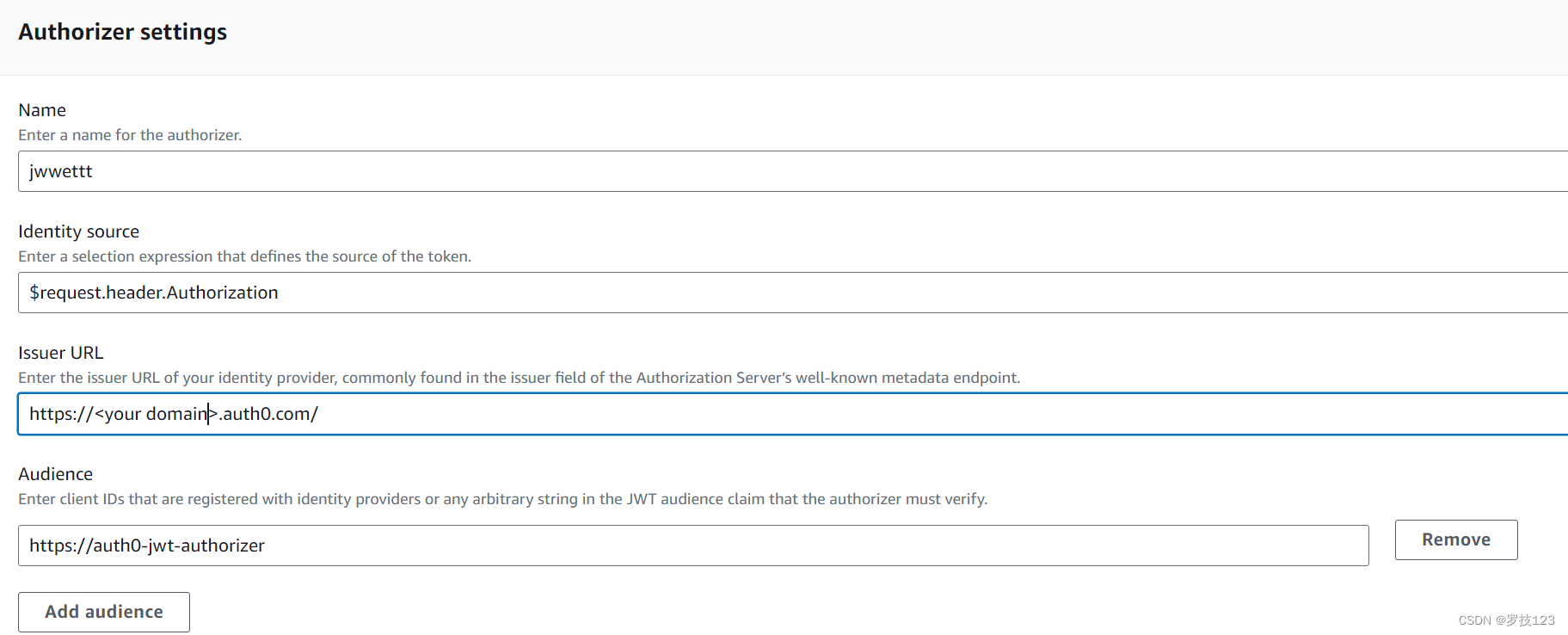

APIGateway 的Authorization 配置如下:

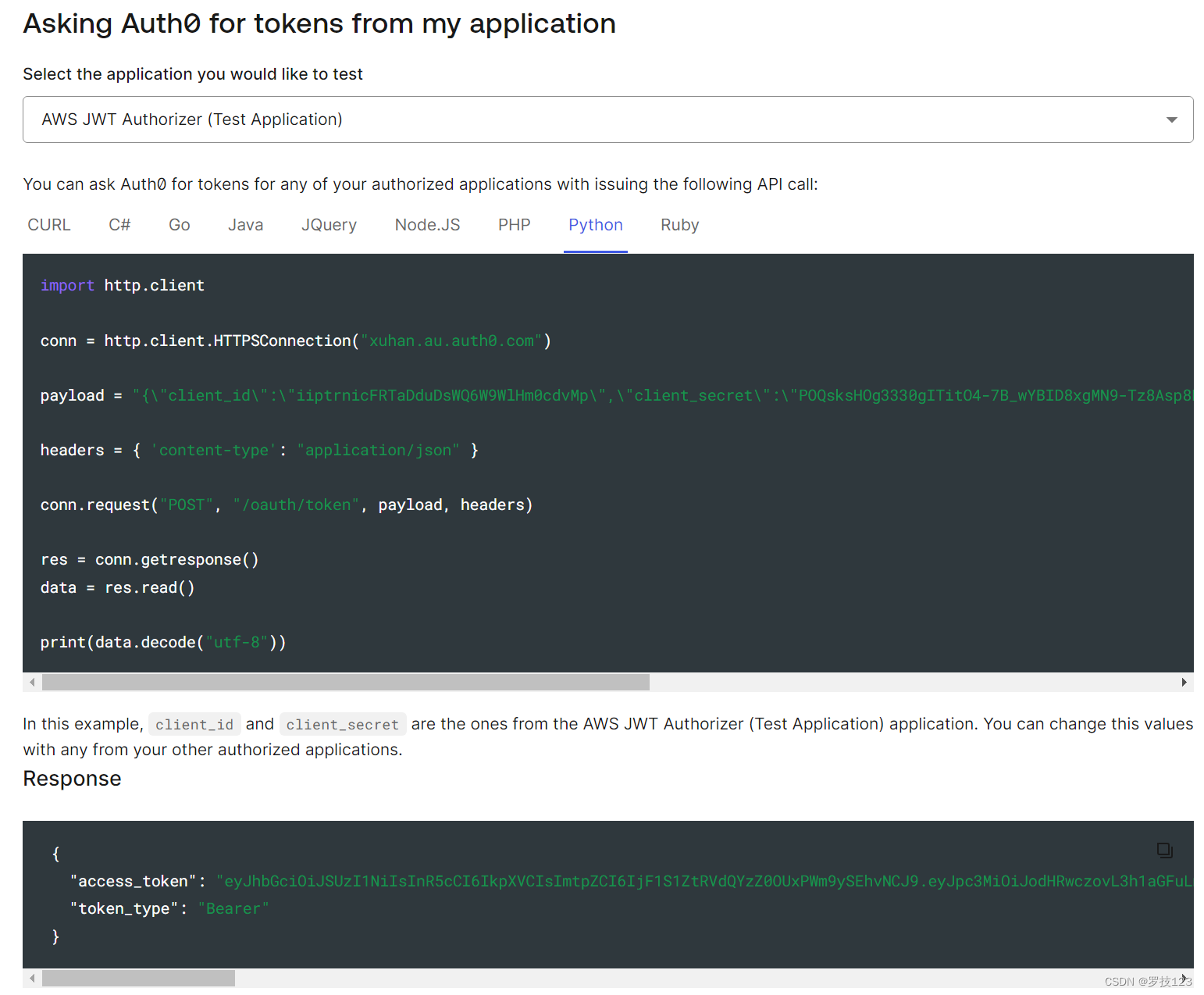

auth0 也提供了实例代码供我们测试:
官方提供的代码很烂,这个功能完全可以使用requests来实现,代码如下:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 import requestsurl = "https://xuhan.au.auth0.com/oauth/token" payload = { "client_id" : "iiptrnicFRTaDduDsWQ6W9WlHm0cdvMp" , "client_secret" : "POQsksHOg3330gITitO4-7B_wYBID8xgMN9-Tz8Asp8R6PbXxSg1vq6De8HoIn7p" , "audience" : "https://auth0-jwt-authorizer" , "grant_type" : "client_credentials" } headers = {'content-type' : "application/json" } response = requests.post(url, json=payload, headers=headers) print (response.text)

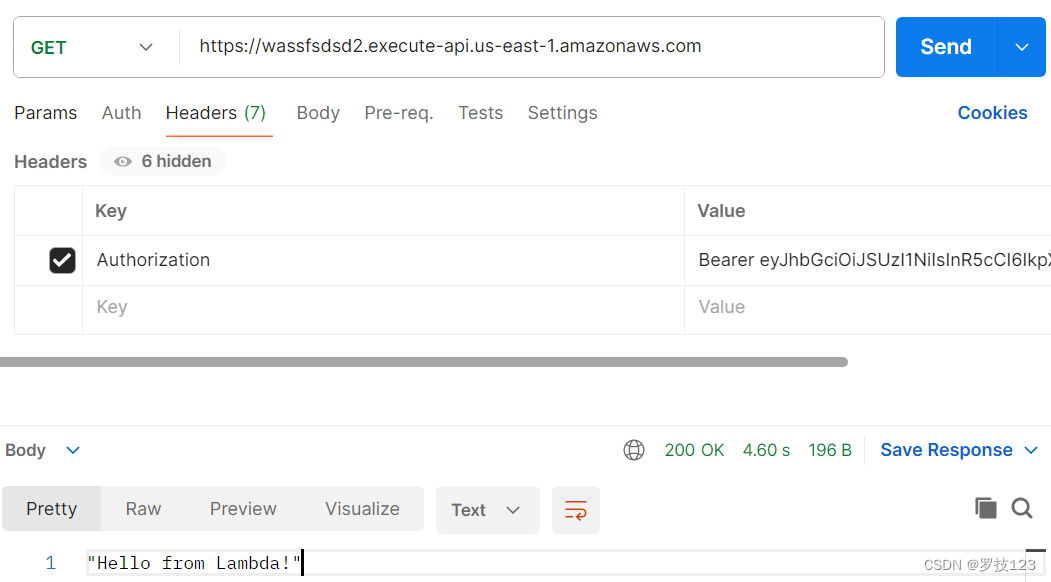

然后可以使用Postman来进行验证,其实就是在请求头中加上了Authorization: Bearer < your JWT>,这样是可以通过客户端加上凭证范访问APIGateway.
APIKEYAPIKEY本来是用来做限流的功能,比如说某个服务会提供API给开发者使用,但同时又不希望开发者滥用这样的凭证,所以才有了这个功能。很多人会把这个当成限制匿名用户的一部分,虽然这样的解释没有问题,但是APIKEY的作用仍然是做限流而不是认证。

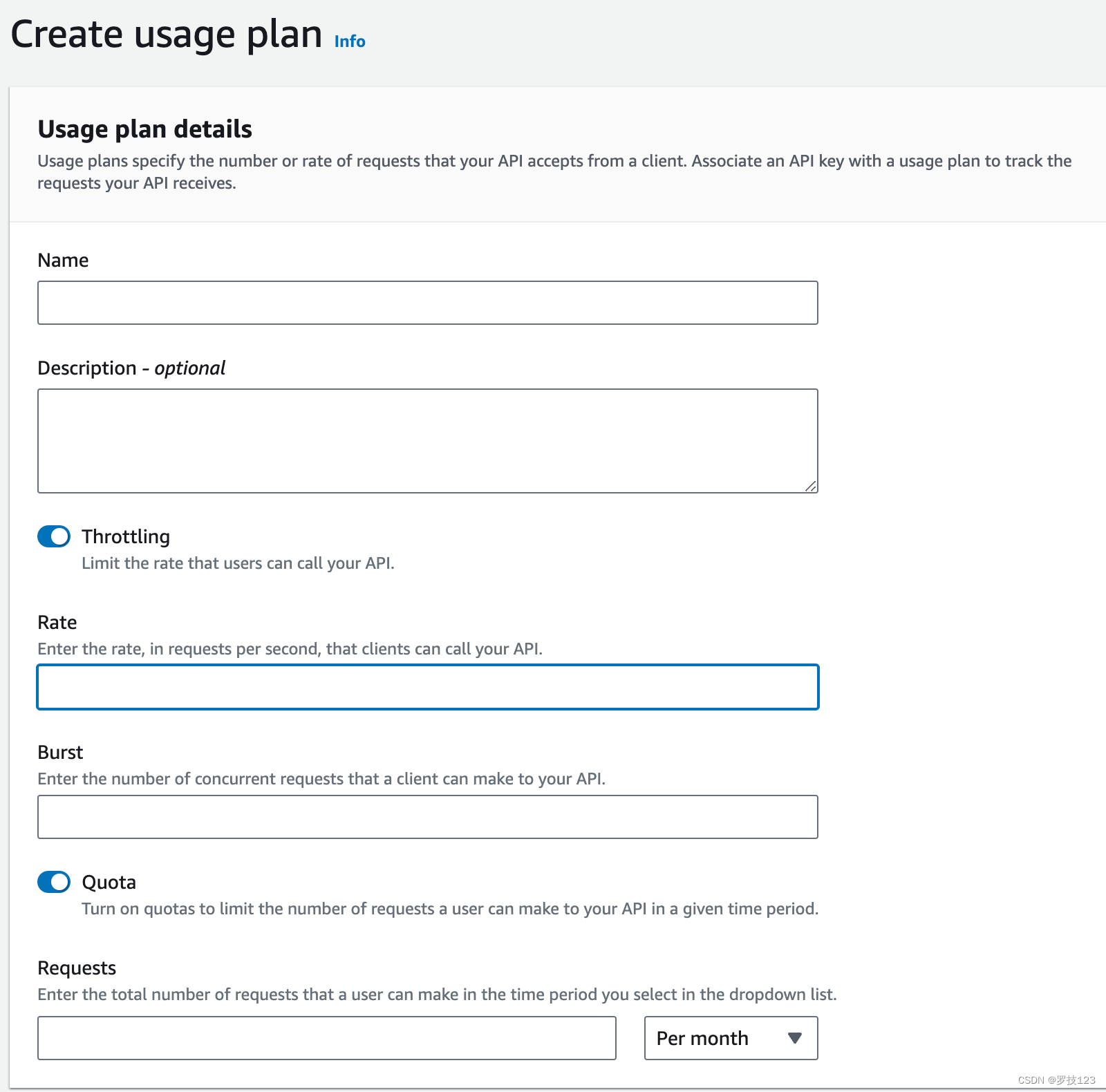

对于REST API来说APIKEY通常与使用计划关联,然后再再特定的路由中启动APIKEY。在使用计划中写明Burst limit和Rate limit,以及每天或者每月的额度。然后在请求头中带上x-api-key: your apikey
速率限制(Rate limit) :设计用来控制较长时间尺度(如每秒)内的平均请求量,确保服务的稳定性和可靠性,防止 API 被过度使用。
突发限制(Burst limit) : 设计用来处理短时间内的高流量突发,允许在极短的时间窗口内接受较多请求,但不应持续太久,以避免服务器资源被迅速耗尽。

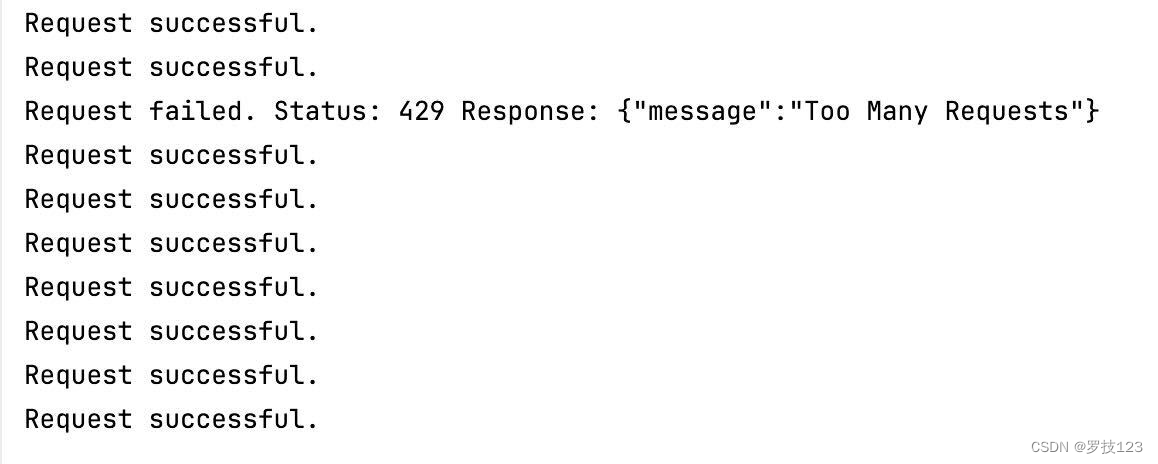

使用Python多进程测试代码如下,实测达到任意限制都会报错 429 {“message”:“Too Many Requests”}
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 import requestsfrom multiprocessing import Pooldef make_request (url ): headers = {'x-api-key' : 'your key api' } response = requests.get(url, headers=headers) if response.status_code != 200 : return f"Request failed. Status: {response.status_code} Response: {response.text} " return "Request successful." def main (): url = "your url" process_count = 100 with Pool(process_count) as p: results = p.map (make_request, [url] * 10 ) for result in results: print (result) if __name__ == '__main__' : main()

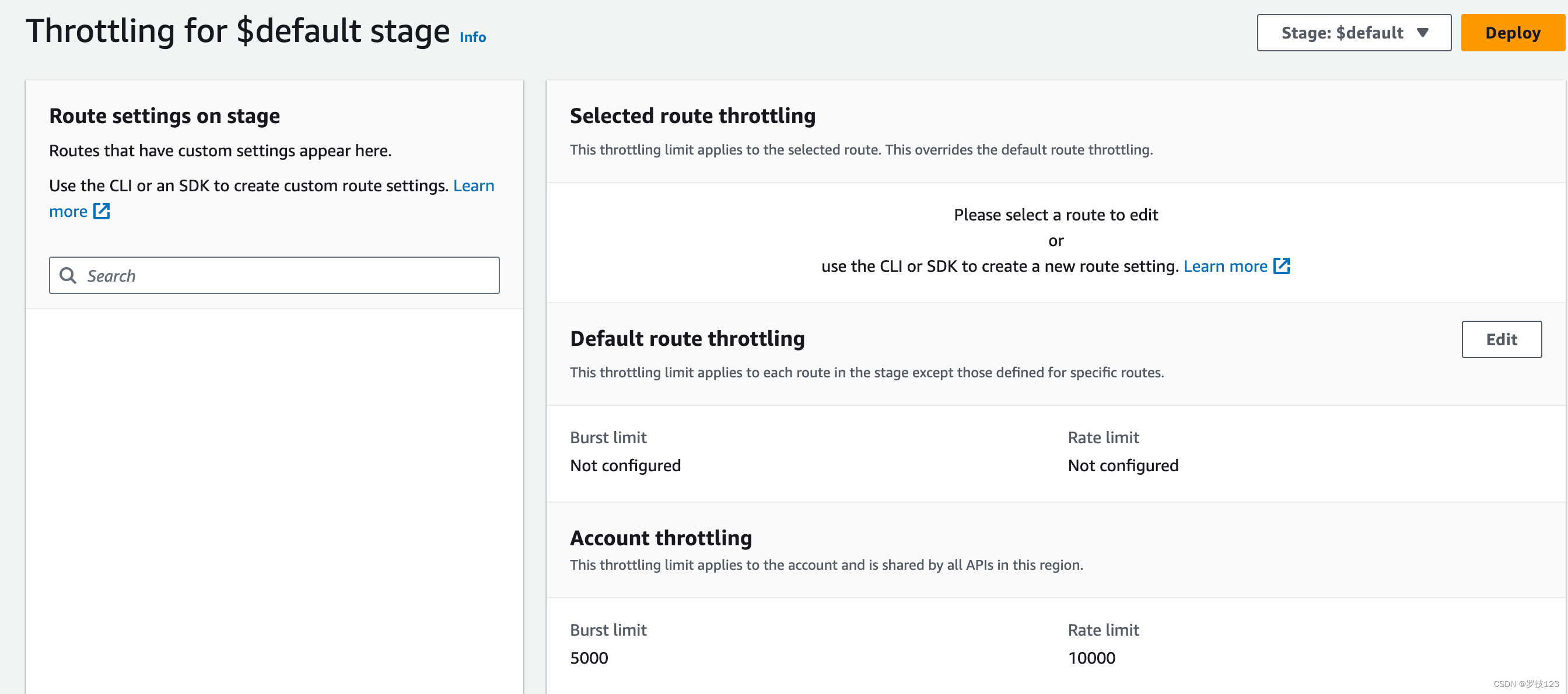

对于HTTP API 来说则是直接在阶段设置就可以,同样可以达到限流的效果。
最后关于中国区中国区有一个特殊的流程叫做ICP备案, 如果没有进行备案的话,那么无论是公网访问还是内网访问,都会遇到如下的401报错
当然如果使用自定义域名的话,那么域名也需要备案。
